• MIO Clear 15W

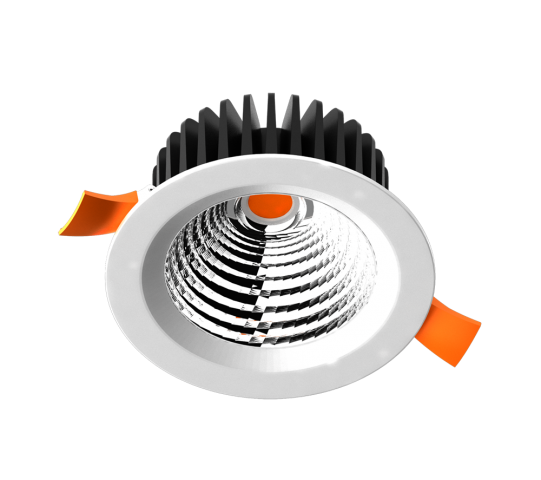

MIO BASIC CLEAR 15W 830 1350lm 40d Non-Dim IP44

The luminaire intended for retail spaces, offices, hotels, administrative premises, private interiors, and lofts lighting. Depending on the project requirements, the outside locking ring can be white, black or grey. IP44 protection allows using the luminaire in rooms with
excess moisture. This luminaire is an energy-efficient replacement for CFL lamps with a rated power of 2*18W, 26W, and 32W (provides a total energy saving of 50%) as well as MHL luminaires with a rated power of 35W (provides a total energy saving of 30% to 50%).

A small plug-in luminaire with an installation depth of 64mm, a hole diameter of 125mm, and a weight of 690g.

This luminaire has the lowest unified glare rating and a comfortable shielding angle, due that protecting the observer’s eyes from direct light coming from the light source.

Name

MIO BASIC CLEAR 15W 830 1350lm 40d Non-Dim IP44

Code

721015140

System power, W

15

Light flow, LM

1350

Color rendering index, CRI

80

Color temp., K

3000

Scattering angle, deg

40°

Input voltage, V

220

Dimming

Non-dimable

Cutout, mm

cutout 125

Use

Universal purpose

Product segment

General interior lighting

Device type

Ceiling recessed lights

Protection

IP44

Control system

Switch on/off

Glow

White

Specifications

Specifications

Housing: Pressure-molded aluminum housing is coated with polyester powder paint.
Outside locking ring: Easy “turn-and-lock” installation.
Housing color: White (black and grey colors are optional).
Diffuser: Transparent tempered glass.
Reflector: Anodized aluminum.
Light source: Tridonic, Samsung, Cree.
Color temperature, K: 2700 to 4000.
Beam angle: 40°.
Power supply: External. Tridonic, Meanwell (input voltage: 220V).
Capability for dimming: Yes.
Environment temperature: -10° to +60°.
Unified glare rating (UGR): < 19.
Luminous flux, lm: 1300-1820.

Drawings

Drawings

MIO Clear 15
