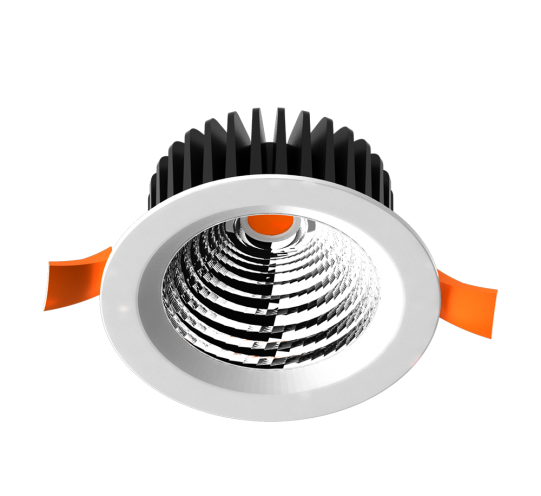

MIO ECO CLEAR 10W 930 1040lm 40d DALI-Dimmable IP44

The luminaire intended for retail spaces, offices, hotels, administrative premises, private interiors, and lofts lighting. Depending on the project requirements, the outside locking ring can be white, black or grey. IP44 protection allows using the luminaire in rooms with excess moisture. This luminaire is an energy-efficient replacement for CFL lamps with a rated power of 13W, 18W, and 26W (provides a total energy saving of 50%) as well as halogen lamp luminaires with a rated power of 35W to 50W (provides a total 70% energy saving). This luminaire is the most compact one in the MIO series with an installation depth of 45mm, with hole diameter of 90mm and a weight of 340g. This luminaire has the lowest unified glare rating and a comfortable shielding angle, due that protecting the observer’s eyes from direct light coming from the light source. ECO Extended lighting system control capabilities, a standard LED module, a dimmable driver. Universal series for using in retail space of devices based on an LED module and a dimmable driver.

Code 721010160
Name MIO ECO CLEAR 10W 930 1040lm 40d DALI-Dimmable IP44
System power, W 10
Input voltage, V 220
Color temp.,K 3000
Light flow, LM 1180
Color rendering index, CRI 90
Cutout, mm cutout 90
Scattering angle, deg 40°
Product segment General interior lighting
Device type Ceiling recessed lights
Use Universal purpose
Control system DALI
Glow White
Protection IP44
Dimming DALI-dimmable

Characteristics of the series

Housing: Pressure-molded aluminum housing is coated with polyester powder paint.
Outside locking ring: Easy "turn-and-lock" installation.
Housing color: White (black and grey colors are optional).
Diffuser: High-quality acrylic glass, fully covers the reflector.
Reflector: Hidden behind the diffuser.
Light source: Hidden behind the diffuser. Tridonic, Samsung, Cree.
Color temperature, K: 2700 to 4000.
Beam angle: 90°.
Power supply: External. Tridonic, Meanwell (input voltage: 220V).
Capability for dimming: Yes.
Environment temperature: -10° to +60°.
Unified glare rating (UGR): < 19.
Luminous flux, lm: 700, 750.
