Code | 771144158 |

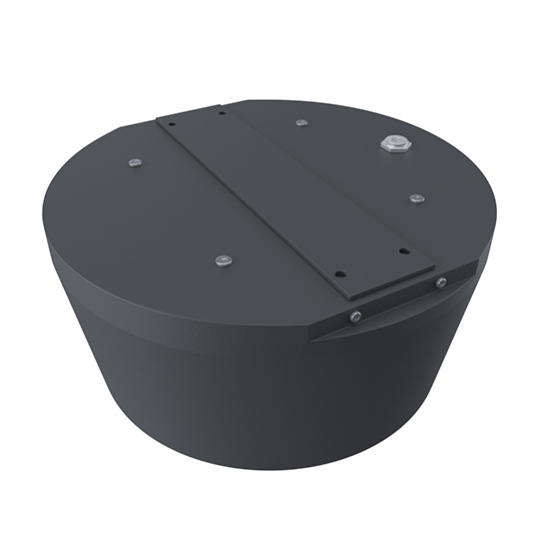

Name | ORIOLIS TOP XL 72W RGBW 4in1 DMX-512 24V IP66 |
System power, W | 72W |
Input voltage, V | 24V |
Color temp.,K | RGBW |
Dimensions | D258x118 |
Weight, kg | 4.2 |
Control system | On/Off, DMX-512, 1-10V, TRIAC, DALI |
Protection | IP66 |
Beam angles | 15°, 25°, 40°, 60°, 90° |
Housing: Pressure die-cast aluminum alloy with polyester powder paint
Housing color: Black, Grey, RAL
Beam angle: 15°, 20°, 25°, 36°, 40°, 60°, 90°
IES protection classes: Class I (SELV)
Color temperature, K: 2700K, 3000K, 4000K, 5000K, 6000K, R, G, B, RGB 3in1, RGBW 4in1, Tunable white
Input voltage, V: 24V, 220V
Control system: On/Off, DMX-512, 1-10V, TRIAC, DALI
Ingress Protection Rating, IP: IP66
Operating temperature: -40°С ~ +50°C
Weight: 1.6 - 4.2 kg
