| Code | 781012014 |

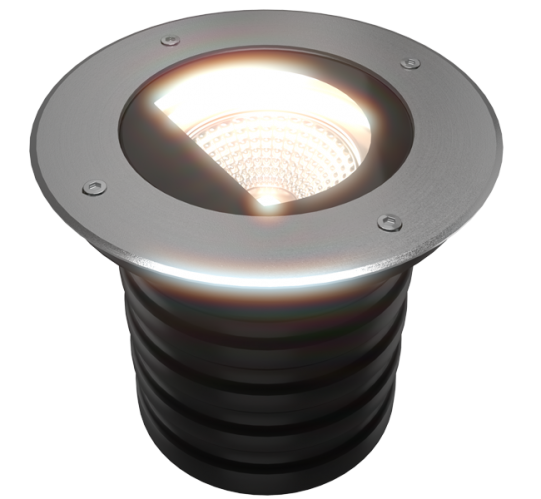

| Name | CRUZ M 12W SINGLE 12V/24V IP67 |
| System power, W | 12 |
| Input voltage, V | 24 |
| Color temp.,K | 3000K-6000K |
| Dimensions | Ø130×116 |
| Weight, kg | 1.0 |
| Product segment | Landscape lighting |
| Device type | Ground recessed lights |
| Control system | Switch On/Off |
| Glow | WHITE |
| Protection | IP67 |
| Beam angles | 8°, 12.5°, 20°, 30°, 40°, 60° |
Housing: Pressure die-cast aluminum alloy with polyester powder paint.
Fronted cover: stainless steel
Glass: Tempered glass, T= 8 mm
Optical system: lenses CREE. Efficiency ≥ 85\%
Beam angles: 8°, 12.5°, 20°, 30°, 40°, 60°
Housing color: RAL
Control system: Switch On\\Off , DMX-512
Ingress Protection Rating, IP: IP67
Operating temperature: -40°C ~ +50°C
Guaranteed lifetime, hours: 50 000h
MAX load: 1760kg.
Installation: built into the ground with a plastic mounting box (supplied)
