| Code | 621022010 |
| Name | GARNET GLOW GR S 22W 220V IP66 Single Color |
| System power, W | 22 |
| Input voltage, V | 220 |
| Color temp.,K | 2700-5000 |

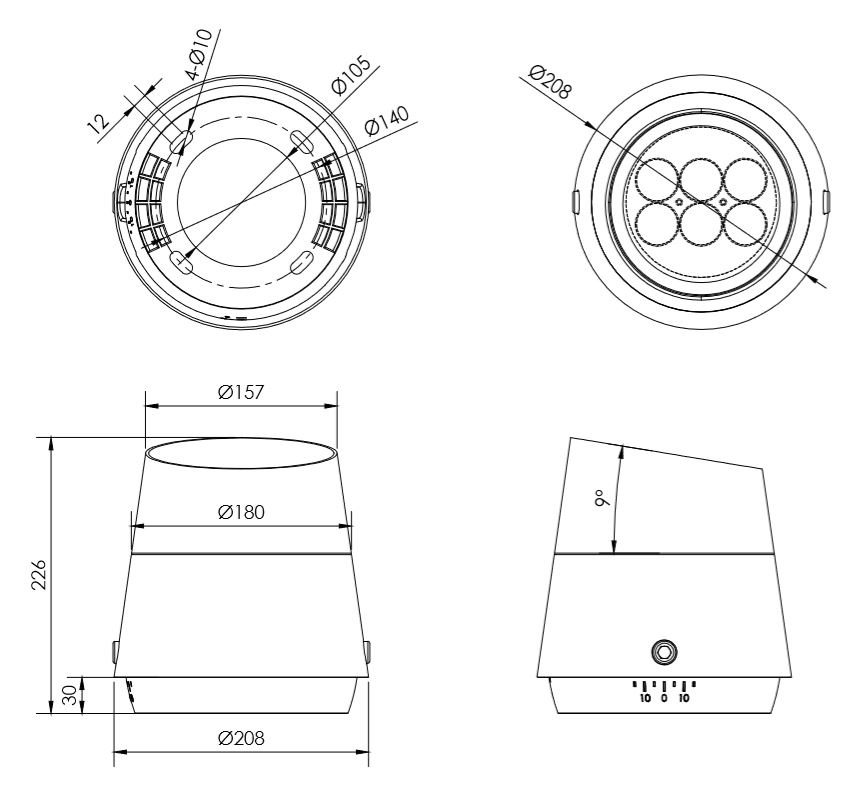

| Dimensions | d157x226 |
| Weight, kg | 2 |
| Product segment | architectural lighting |
| Device type | FLOODLIGHTS |
| Control system | 0-10V |
| Glow | WHITE |
| Protection | IP66 |
| Beam angles | 2.6°, 3.5°, 12°, 20°, 30°, 60°, 10x70°, 5x20° |
Housing: Pressure die-cast aluminum alloy with polyester powder paint
Fasteners: Stainless steel, T=2.00mm
Glass: Tempered glass, 5.0 mm
Optical system: lenses. Efficiency ≥ 85\%
Housing color: Black, RAL
Color temperature, K: 2700K - 5000К, RGBW
Control system: CC, DALI, 0-10V, DMX-512, RDM, Switch On\\Off
Input voltage, V: 24V, 36V, 220V
Ingress Protection Rating, IP: IP66
Operating temperature: -40°C ~ +50°C
