| Code | 622150010 |

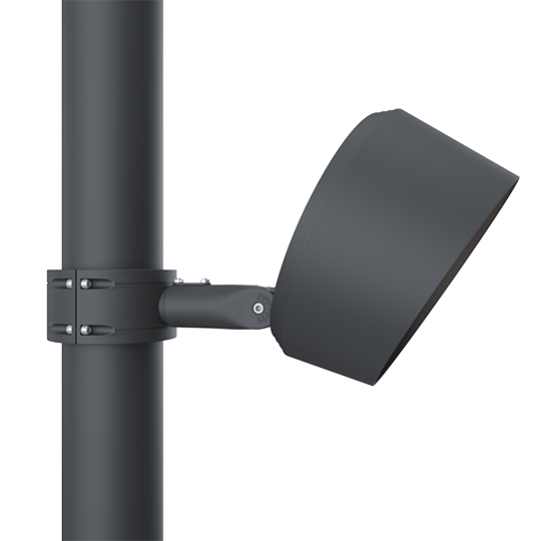

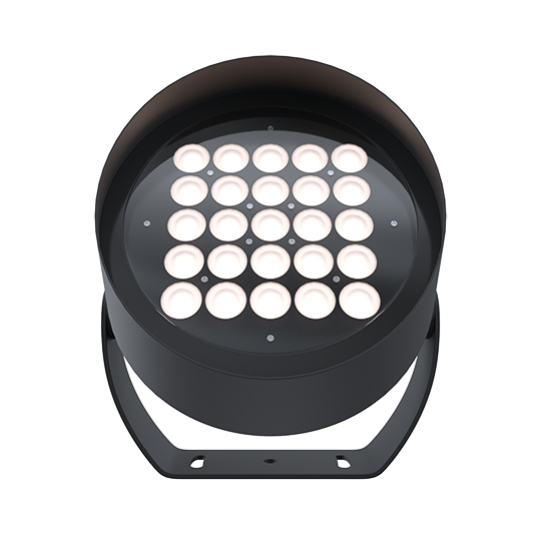

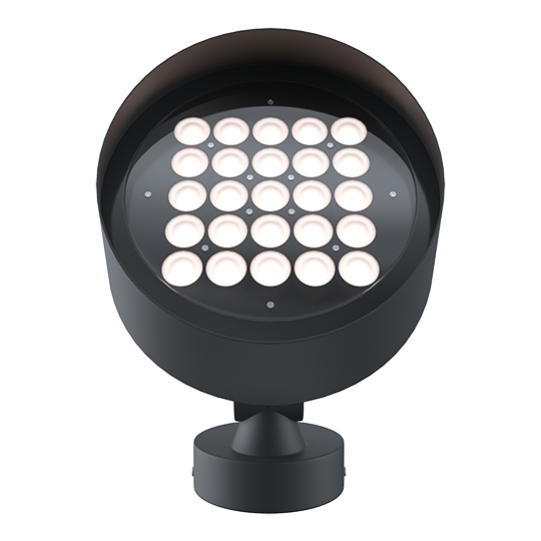

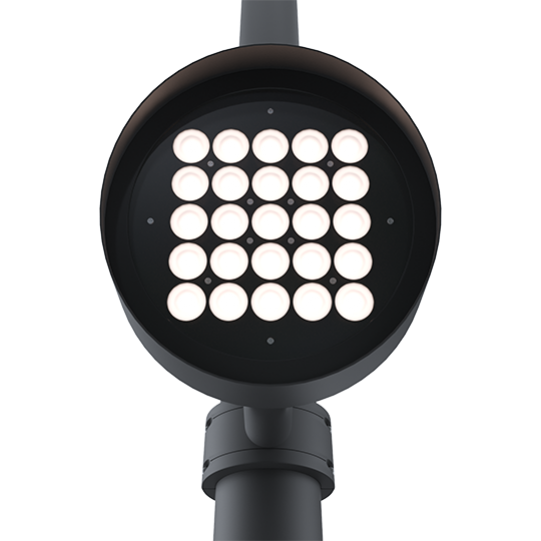

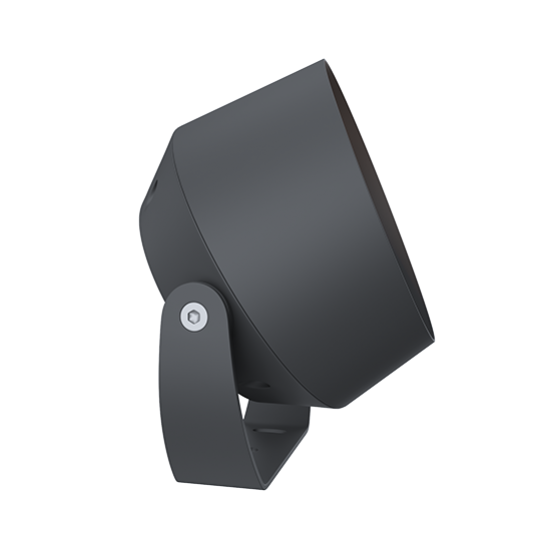

| Name | GARNET GLOW XL 120W 100V-264V IP66 Single Color |
| System power, W | 120 |
| Input voltage, V | 220 |
| Color temp.,K | 5000 |
| Dimensions | Ø328x355x222 |
| Weight, kg | 9 |
| Product segment | architectural lighting |
| Device type | Floodlights |
| Control system | RDM |
| Glow | WHITE |
| Protection | IP66 |
Housing Pressure die-cast aluminum alloy with polyester powder paint. Body and glass are fitted with silicone gaskets.
Fasteners: Stainless steel, T=2mm
Glass: Tempered glass, 3mm
Optical system: LED lens, efficiency >85\%
Beam angles: 2.6°, 3.5°, 12°, 20°, 30°, 60°, 10x70, 5x20
Housing color: Black, RAL
Cable connection: Cable connection (standard) or the IP68 plug ("male-female" type).
Cable pin: Sealed cable enter IP68, PG-11 copper.
Operating temperature: -40°С ~ +50°C
