| Code | 624215120 |

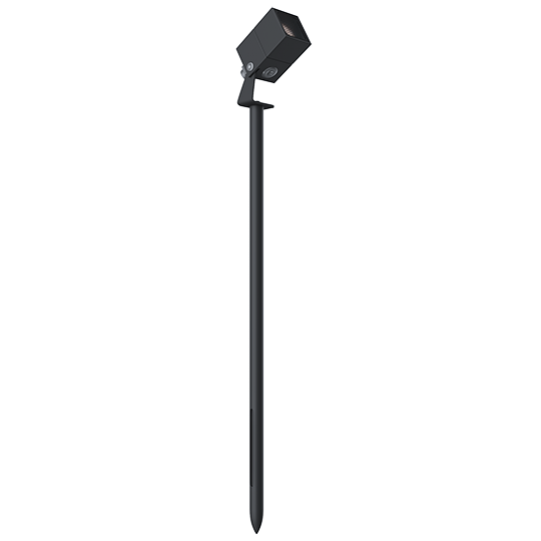

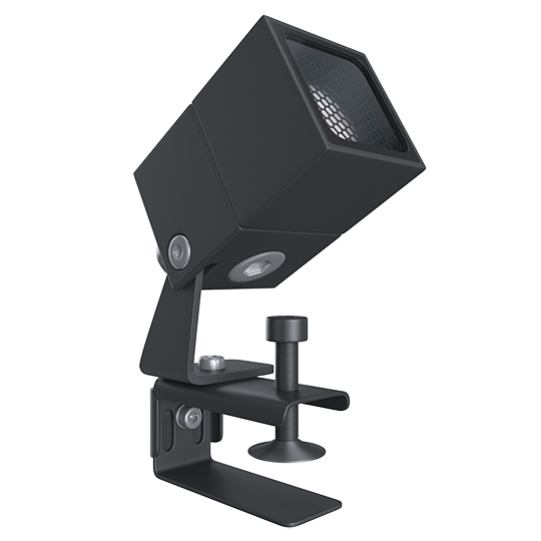

| Name | INDEX QUADRO S 3W 12V/24V SINGLE IP66 |
| System power, W | 3W |
| Input voltage, V | 12V/24V |
| Color temp.,K | 2700 - 6000K, R,G,B |
| Dimensions | 30x30x48 |
| Weight, kg | 0.3 |
| Product segment | architectural lighting |
| Control system | On/Off |
| Protection | IP66 |
| Beam angles | 20°, 30°, 45°, 60°, 25°×45° |
Housing: Pressure die-cast aluminum with polyester powder paint. Silicone seals in housing.
Housing color: Black, Grey, RAL
Beam angles: 20°, 30°, 45°, 60°, 25°×45°
IES protection classes: Class I (SELV)
Color temperature, K: 2700K, 3000K, 4000K, 5000K, 6000K, R, G, B, RGBW 4in1
Input voltage, V: 12V, 24V
Control system: On/Off
Ingress Protection Rating, IP: P66
Operating temperature: -40°С ~ +50°C
Weight: 0.3 kg
