| Code | 809001010 |
| Name | PIN S 1W RGB DMX-512 24V IP66 |
| System power, W | 1W |
| Input voltage, V | 24V |
| Color temp.,K | RGB |

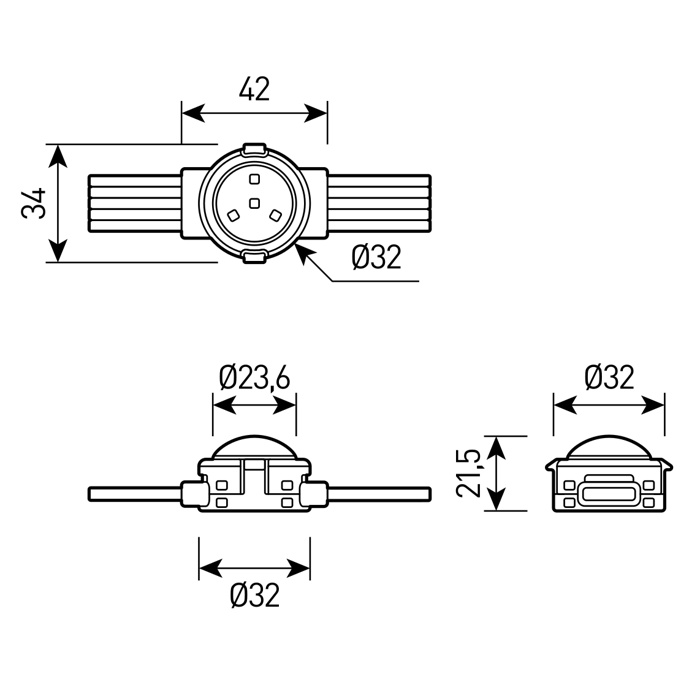

| Dimensions | 42x34x22 |
| Weight, kg | 0.04 |
| Product segment | architectural lighting |
| Device type | Wall mounted lights |
| Protection | IP66 |
| Beam angles | 120° |
Housing: Pressure die-cast aluminum alloy with polyester powder paint
Housing color: Black, White
Beam angle: 120°
IES protection classes: Class III (SELV)
Color temperature, K: RGB, RGBW
Input voltage, V: 24V
Control system: DMX-512
Ingress Protection Rating, IP: IP66
Operating temperature: -40°C ~ +50°C
Weight: 0.04−0.08 kg
