| Code | 536006010 |

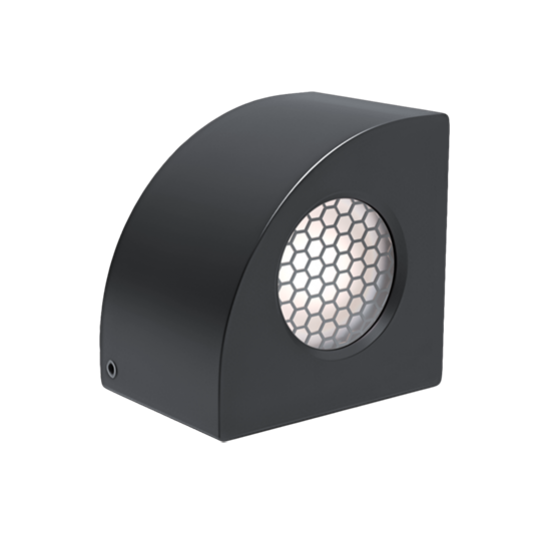

| Name | STEP CONE 3W single color 24V IP66 |
| System power, W | 3 |
| Input voltage, V | 24 |
| Color temp.,K | 2700К-6000К |

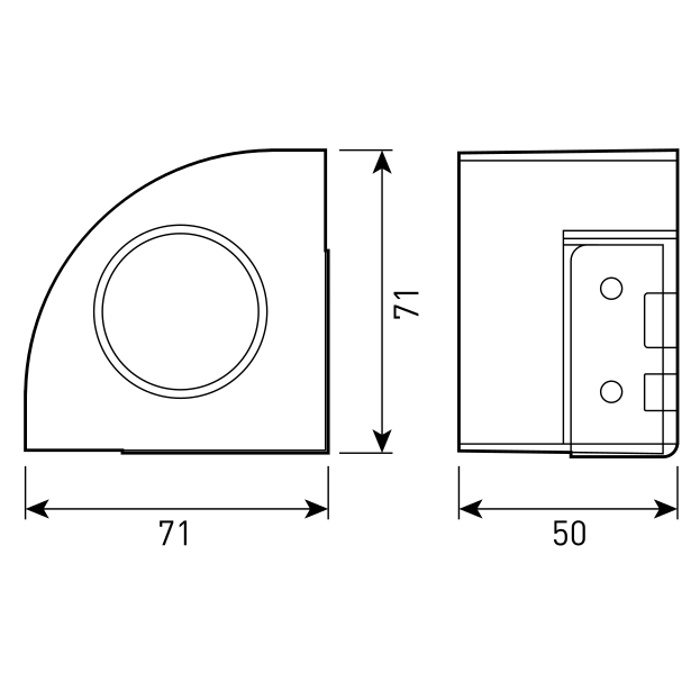

| Dimensions | 71×71×50 |
| Weight, kg | 0.25 |
| Product segment | architectural lighting |
| Device type | Wall mounted lights |
| Protection | IP66 |
| Beam angles | 7°, 15°, 25° |
Housing: Pressure die-cast aluminum alloy with polyester powder paint.
Beam angle: 7°, 15°, 25°
Housing color: Black, RAL
Color temperature, K: 2700K - 6000K
Input voltage, V: 24V,
Ingress Protection Rating, IP: IP66
Color rendering index, CRI: >80
Operating temperature: -40°C ~ +50°C
