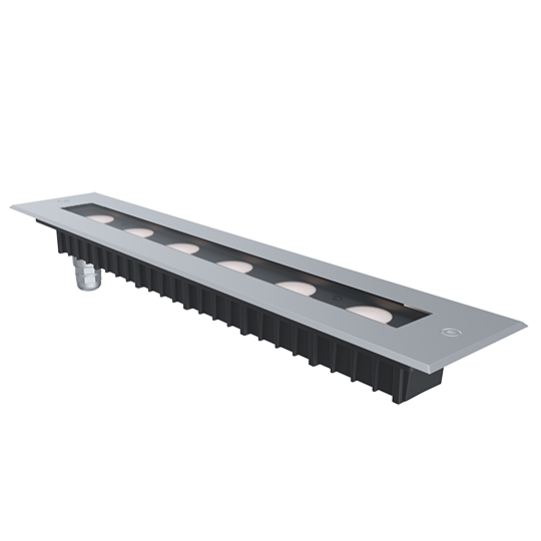

LINER M 12W 12V/24V/220V IP67 SINGLE

Code 792001029
Name LINER M 12W 12V/24V/220V IP67 SINGLE
System power, W 12W
Input voltage, V 12V, 24V, 220V
Color temp.,K 2700-6500K
Dimensions 328×63×65
Weight, kg 1.2
Product segment architectural lighting
Device type Railing recessed
Control system On/Off, PWM, 0-10V, DALI, DMX-512
Protection IP67
Beam angles 10°, 30°, 45°, 60°, 45°×35°

Characteristics of the series

Housing: Pressure die-cast aluminum alloy, Stainless steel
Housing color: Metallic
Beam angle: 10°, 30°, 45°, 60°, 45°×35°, 120° diffised
Color temperature, K: 2700K, 3000K, 4000K, 5000K, 6500K, RGB
Input voltage, V: 12 V, 24 V, 220 V
Control system: On/Off, PWM, 0-10V, DALI, DMX-512
Ingress Protection Rating, IP: IP67
Operating temperature: −40°C ~ +50°C
Weight: 0.8 - 1.2 kg
